Why Your Blackout Shade Still Leaks Light (and How Side Tracks Fix It)

TL;DR: Your blackout shade blocks light through the fabric just fine. The problem is the edges. Standard roller shades leave 5-15 mm gaps on each side, plus open space at the top and bottom. Those gaps let in enough light to disrupt sleep. Blackout shades with side tracks seal every edge with aluminum channels, a top valance and a sill seal to achieve verified 0 lux.

You bought blackout shades. You hung them correctly. And you can still see a bright rectangle of light around the edges at 6 AM.

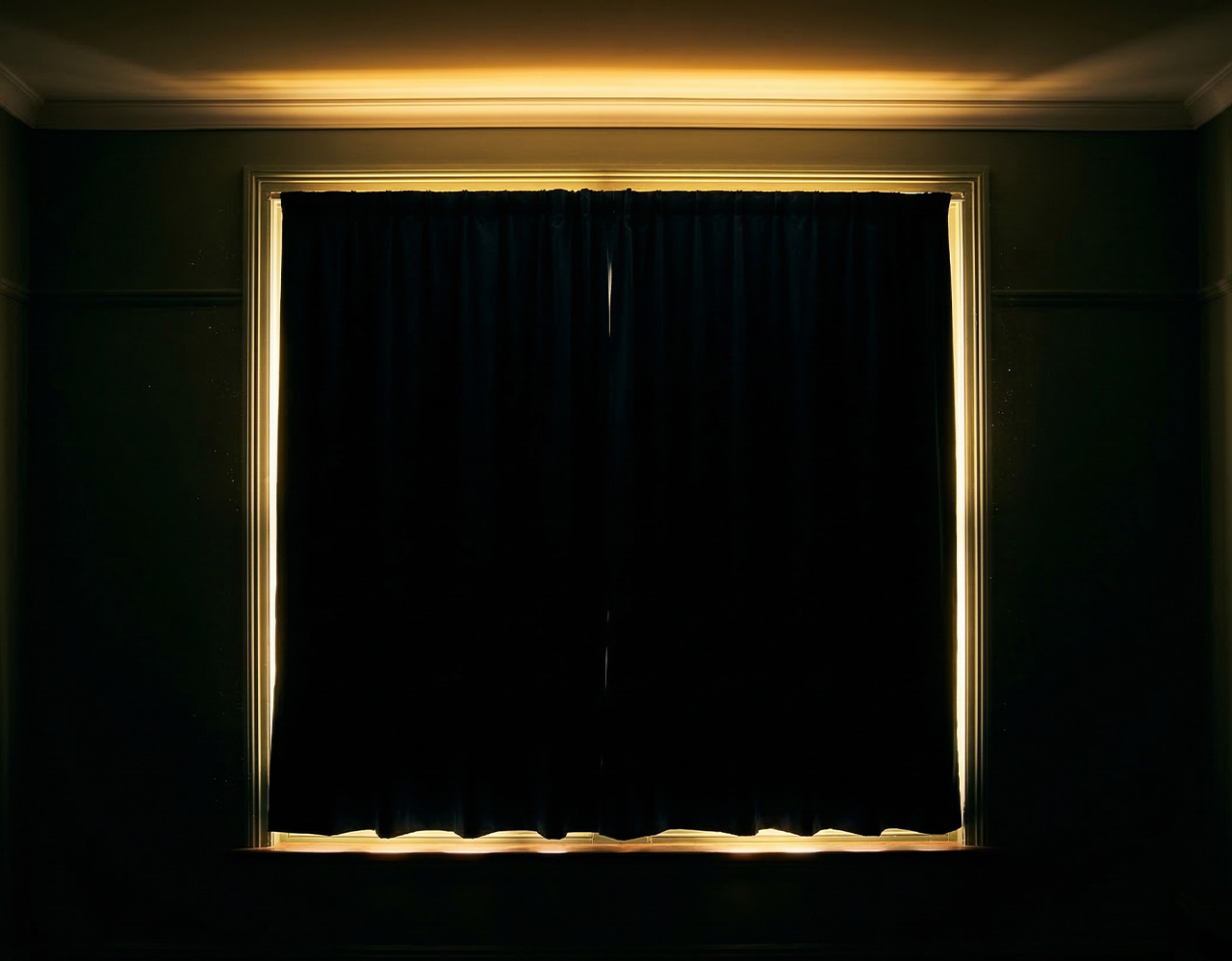

That glow around the perimeter is called the "halo effect." It happens because conventional blackout shades only solve half the problem. The fabric blocks light. The edges do not.

If you have tried blackout curtains that still leak light, you already know this frustration. The issue is not the material. It is the gap between the shade and the wall.

A 2026 policy brief from the Light for Public Health Consortium published in Public Health Reviews recommends "darkness or near-darkness during sleep" as a baseline for circadian health. Lead author Dr. Mirjam Piper notes that even moderate evening and nighttime light can suppress melatonin, delay circadian timing and affect sleep quality. The practical takeaway: partial blackout is not enough when the goal is real darkness.

This guide explains why blackout shades with side tracks exist, how they work and what to look for when standard shades fall short.

How Big Is the Gap on a Standard Blackout Shade?

Bigger than you think. And easy to measure yourself.

A standard roller shade mounts inside a set of brackets. The shade fabric hangs from a tube and rolls down over the window. At the bottom, the fabric ends at a weighted hem bar.

Here is where the light sneaks in:

Side gaps: The fabric needs clearance to roll freely. Most manufacturers leave 5-10 mm of space between each edge of the fabric and the window frame. On an outside-mount shade, the gap can reach 15 mm per side. That is 30 mm of exposed glass across both edges.

Top gap: The roller tube sits inside a headrail or bracket, but there is no seal between the headrail and the wall. Light passes over the top of the shade and reflects off the ceiling.

Bottom gap: The hem bar rests against or near the sill but does not lock against it. Wind, static or slight misalignment lifts the bottom edge. Light floods in underneath.

Grab a ruler and measure the gap on your existing shade. Most people discover 8-12 mm per side. That sliver is all it takes to produce the halo effect that wakes you up before your alarm.

Research confirms those millimeters matter. A 2025 computational model validated against empirical data found that bedroom light levels between 5 and 10 lux represent the critical intervention threshold for sleep disruption. Standard blackout shade gaps routinely let in enough streetlight or morning sun to push past that range.

What Are Side Tracks and How Do They Block Light?

Side tracks are aluminum channels that mount vertically on each side of the window frame. The shade fabric feeds into these channels as it lowers, creating a sealed barrier at both edges.

Think of it like a zipper for your shade. Instead of the fabric hanging freely with daylight visible at the edges, it slides inside a track that holds the fabric flush against the wall. No gap. No glow. No halo effect.

Here is how each component works in a sealed system:

Side channels (the tracks): Aluminum rails with a U-shaped profile attach to the wall or inside the frame. The fabric edges sit inside the channel. Light cannot pass between the shade and the wall because there is no space for it to enter.

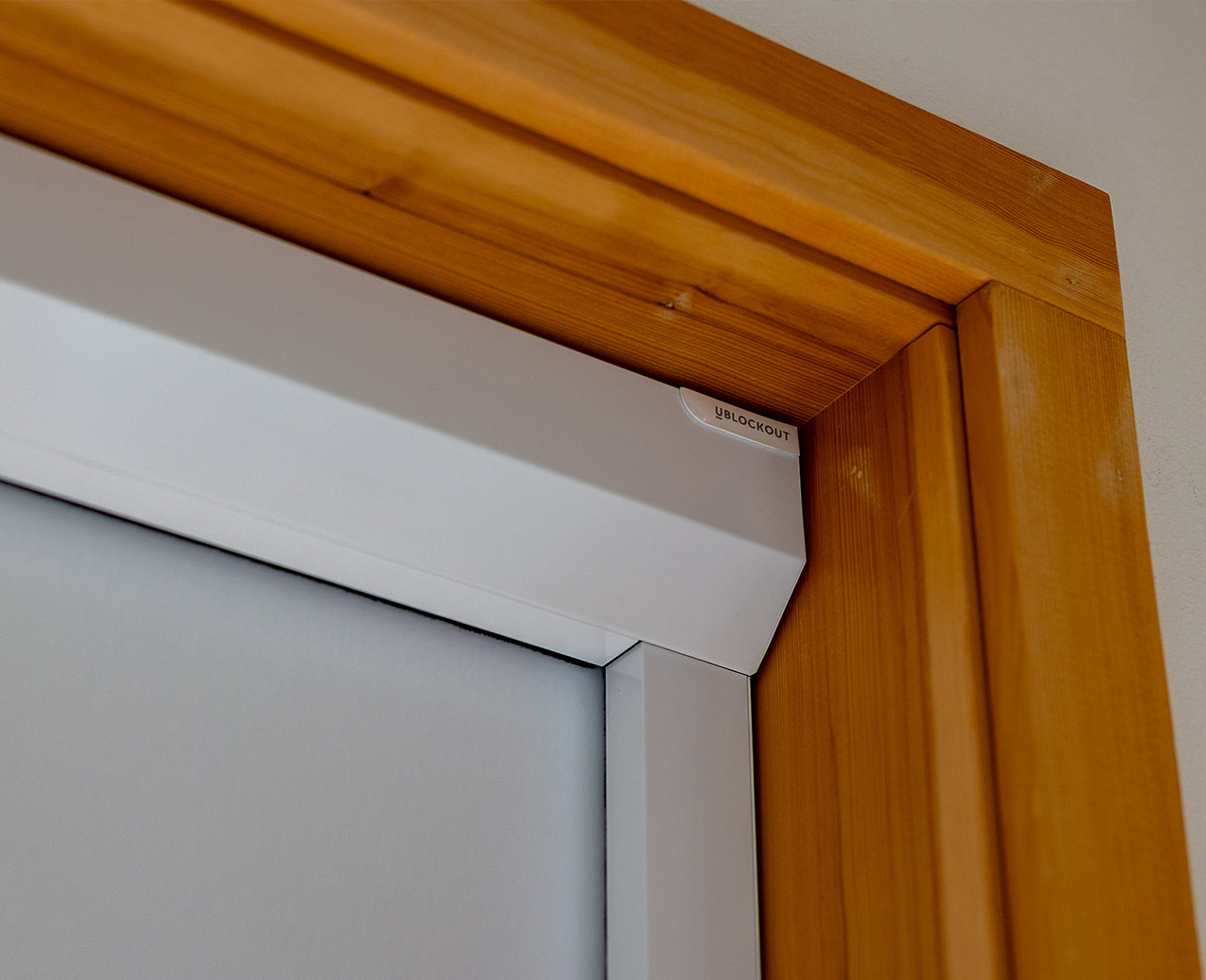

Top valance: A cover piece at the top of the shade encloses the roller tube. This eliminates the gap above the shade where light would otherwise bounce off the ceiling into the room.

Sill seal (bottom bar): The weighted bottom bar of the shade makes contact with the window sill or a mounted base strip. Some systems use brush seals or compression strips to maintain contact even when the window sill is uneven.

Together, these three components create what engineers call a "perimeter seal." The fabric handles the face of the window. The tracks, valance and sill seal handle every edge. The result is complete darkness across the entire window opening.

Does the Fabric Even Matter If the Edges Are Sealed?

Yes. But not the way most people think.

Fabric density determines how much light passes through the shade. Most blackout-grade roller fabrics block 99% or more of light through the material itself. The fabric is rarely the weak link.

The weak link is always the edges. A shade with 99.9% light-blocking fabric and 10 mm side gaps still produces visible light around the perimeter. That is why room darkening shades and true blackout shades are not the same thing. The difference is the seal, not the fabric.

For blackout shades with side tracks, fabric matters in three other ways:

Opacity consistency: The fabric should maintain uniform density across its full width. Thin spots or weave inconsistencies create pinpoints of light even in a sealed system.

Edge fit: The fabric must be precisely sized to fit inside the side channels without bunching or leaving slack. This is why custom-made shades outperform off-the-shelf options in sealed track systems. Every shade needs to match the exact window dimensions.

Durability: The fabric slides inside aluminum channels hundreds of times per year. It needs to resist fraying and maintain its edge integrity over time.

How Do You Know If Your Shade Needs Side Tracks?

Not every bedroom needs a sealed system. Here is how to decide.

You need side tracks if:

• You can see a visible glow around any edge of your current shade
• Streetlights or morning sun enter around the sides of your window covering
• You work night shifts and sleep during the day when sunlight is at full intensity
• You have a nursery where even small amounts of light wake your child during naps
• You have tried blackout curtains and they do not seal at the sides

A standard shade may be enough if:

• You are comfortable with 85-95% light reduction
• You primarily want privacy rather than total darkness
• Your bedroom windows face away from streetlights and direct morning sun

The Practical Skeptic in you probably wants proof. Fair enough. UBlockout's patented sealed track technology achieves verified 0 lux, meaning zero measurable light enters the room. The National Sleep Foundation validated this performance with their 2024 SleepTech Award. Rated 4.9/5 from 839+ reviews, with 30,000+ installs across the US. That is proof, not a promise.

Can You Add Side Tracks to an Existing Shade?

This is one of the most common questions. The short answer: not really.

Aftermarket side channels exist, but they come with significant limitations:

Fabric width mismatch: Your existing shade was sized for bracket-to-bracket mounting, not for channel insertion. The fabric is either too wide (it bunches inside the track) or too narrow (gaps remain). Either way, you lose the seal.

No top valance integration: Bolt-on tracks do not include a sealed headrail. Light still enters above the shade, which defeats the purpose.

Inconsistent bottom seal: Without a purpose-built sill strip, the bottom bar does not mate with anything. You seal the sides but leave the top and bottom open.

A true sealed system is engineered as a single unit. The tracks, valance, fabric and bottom bar are designed to work together. Retrofitting individual components onto a standard shade is like putting a deadbolt on a door with no frame. The lock works, but the perimeter does not.

If you are starting from scratch, sealed-track blackout shades are custom-made to your exact window measurements. UBlockout shades ship with the aluminum side channels, top valance and bottom seal included. No aftermarket add-ons needed.

What About Blackout Curtains With Side Channels?

Curtains and side tracks do not pair well. Here is why.

Curtains are fabric panels that hang from hooks or rings on a rod. The fabric drapes by gravity. It does not feed into a rigid channel because curtain fabric is too thick and too soft to slide smoothly inside an aluminum track.

Side channels work with roller shades because roller fabric is thin, consistent in thickness and backed by a rigid bottom bar that guides it into the tracks. The fabric moves in a controlled vertical path, like a garage door in its rails.

Curtains bunch, fold and shift laterally. Even "side-return" curtain rods that wrap around the wall leave gaps where the fabric curves. The curve itself creates an opening.

If your goal is complete darkness without side tracks, the closest curtain-based alternative is a wraparound rod with overlapping panels and magnetic hems. That approach gets you to 90-95% light blocking. For the final 5-10%, you need rigid side channels and a roller shade system.

For a deeper comparison, the guide on blackout curtains vs shades breaks down the performance differences across every category.

Key Takeaways

• Standard blackout shades leave 5-15 mm gaps at the sides, top and bottom that create the "halo effect"
• Side tracks are aluminum channels that seal the shade fabric against the wall on both edges
• A complete sealed system includes side channels, a top valance and a sill seal
• Fabric quality matters, but the perimeter seal is what separates partial blackout from total darkness
• Aftermarket side tracks rarely work because the shade, fabric and seal must be engineered as one unit
• UBlockout's patented sealed track technology achieves verified 0 lux and is validated by the National Sleep Foundation's 2024 SleepTech Award
• Rated 4.9/5 from 839+ reviews with 30,000+ installs

Ready to see the proof? Book a free consultation to find out how sealed-track shades fit your windows. Every UBlockout shade is custom-made to your measurements, ships with side channels and top valance included, and comes with a 30-Night Free Trial.

Frequently Asked Questions

What are blackout shades with side tracks?

Blackout shades with side tracks are roller shades that include aluminum channels mounted on each side of the window frame. The shade fabric feeds into these channels as it lowers, sealing the edges against the wall. Combined with a top valance and bottom sill seal, this creates a perimeter seal that blocks all measurable light from entering the room.

How much light do standard blackout shades actually block?

Most blackout roller shades block 95-99% of light through the fabric itself. However, the gaps around the edges let in enough ambient light to reach 5-15 lux at the pillow. Research shows that even 5-10 lux disrupts sleep quality by suppressing melatonin and fragmenting sleep cycles. Side tracks eliminate those edge gaps.

Are total blackout window shades worth the cost?

For anyone who needs genuine darkness (shift workers, parents of young children, light-sensitive sleepers) the answer is yes. UBlockout's sealed-track shades start at $243 and include the side channels, top valance and bottom seal. With a 5-Year Limited Warranty and 30-Night Free Trial, you can test the difference before committing. As one reviewer put it: "Worth every penny."

Can I install blackout shades with side tracks myself?

Yes. UBlockout shades are designed for DIY installation. Digital instructions via QR code walk you through each step. Most customers complete the install in under an hour. The side channels mount with screws into the wall or frame, and the shade clicks into the brackets. Customer support is available by video call if you need help.

Do side tracks work with inside mount and outside mount?

Both mount types work with side tracks. Inside mount fits the shade within the window frame for a flush look. Outside mount covers the entire frame and mounts on the wall beside and above the opening. Outside mount is the better choice when the window frame is shallow (less than 2 inches deep) or when you want maximum light blocking. UBlockout's measuring guide covers both options step by step.

Will blackout shades with side tracks work with smart home systems?

UBlockout shades are available with motorized operation and integrate with smart home systems. You can control them from your phone, set schedules or connect them to voice assistants. The side tracks and sealed design work identically whether you choose manual or motorized operation. For more on motorized options, see the full product page.
